Pixelhue | P20 (incl. FC) rental
P20 – Advanced 4K Video Processor The P20 delivers unrivaled performance with FPGA-based 4K60p 4:4:4 10-bit video processing. With dual working modes, versatile 4K connectivity, and support for multi-screen configuration,…
Product description

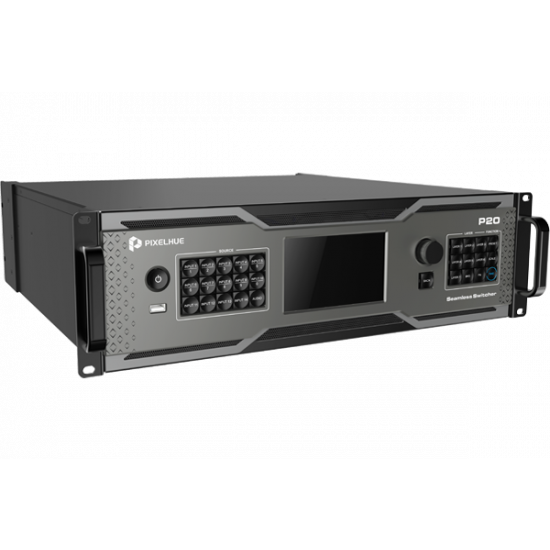

P20 – Advanced 4K Video Processor
The P20 delivers unrivaled performance with FPGA-based 4K60p 4:4:4 10-bit video processing. With dual working modes, versatile 4K connectivity, and support for multi-screen configuration, edge blending, and image mosaic, it is the perfect solution for live events and fixed installations.
Supporting up to 12x DL or 6x 4K layers (P20) and 6x DL or 3x 4K layers (P10), flexible layer effects, and the storage of 128 presets, the P20 offers maximum creative freedom.
Additional highlights include 10G optical fiber ports for signal transmission up to 10 km, user-friendly control via the front panel, U5/U5 Pro controllers, or PixelFlow software, and robust reliability thanks to automatic backup systems.
Specifications
-
Video Processing: FPGA-based, 4K60p 4:4:4 10-bit
-
Working Modes: Switcher mode / PGM only mode
-
Layer Support:
-
P20: Up to 12x DL layers or 6x 4K layers
-
P10: Up to 6x DL layers or 3x 4K layers
-
-
Effects: DSK, mask, crop, flip, cut & fill, border, shadow
-
Presets: Up to 128
-
HDR Support (P20): SDR, HDR10, HLG conversion
-
Connectivity: HDMI 2.0, DP 1.2, 12G-SDI
-
Fiber Transmission: 10G optical fiber ports, up to 10 km (SMF)
-
Outputs:
-
Switcher mode: Up to 2x 4K×2K@60Hz
-
P20 PGM mode: Up to 8K×4K@60Hz
-
-
Control Options: Front panel with 5″ LCD, U5/U5 Pro controllers, PixelFlow software
-
Reliability: Input, output & device backup with seamless switching
